Description

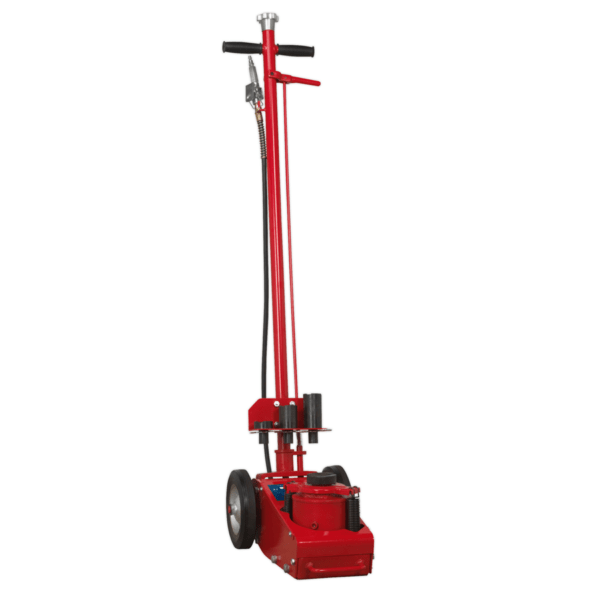

Air Operated Trolley Jack 20tonne
• Powerful and reliable, ideal for workshop or roadside use.
• At modest cost, it takes the effort out of lifting heavy plant, tractors and commercial vehicles.
• Features dead man’s controls and multi-position locking handle.
• Supplied with 20/60/90mm extensions to close the gap between the saddle of the jack and the jacking point.
| Model No: | YAJ20B |
| Maximum Capacity: | 20tonne |
| Minimum Height: | 228mm |
| Maximum Height (inc. Extension)/Capacity: | |
| Stage 1 (mm/tonne): | 548/20 |
| Stage 2 (mm/tonne): | – |
| Piston Stroke: | 120mm |
| Screw Extension: | 110mm |
| Extension: | 20/60/90mm |
| Chassis Length: | 575mm |
| Length including Handle: | 1270mm |
| Width Without Wheels: | 187mm |
| Overall Width: | 322mm |
| Air Consumption: | 9.5cfm |
| Working Pressure: | 102-145psi |
| Weight: | 43kg |
