Description

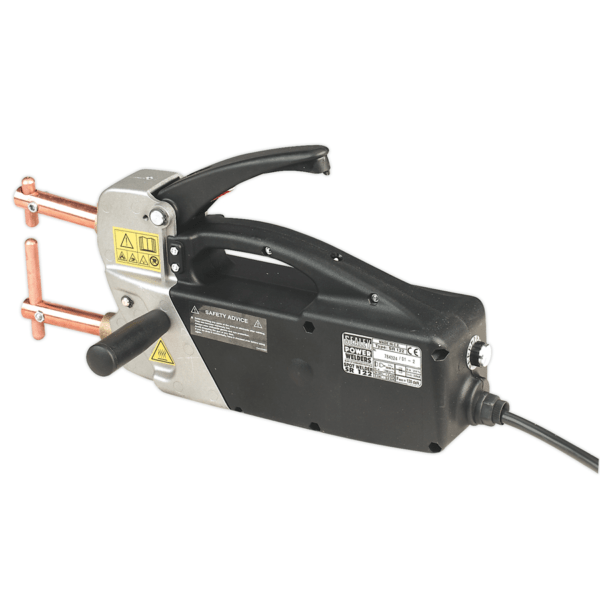

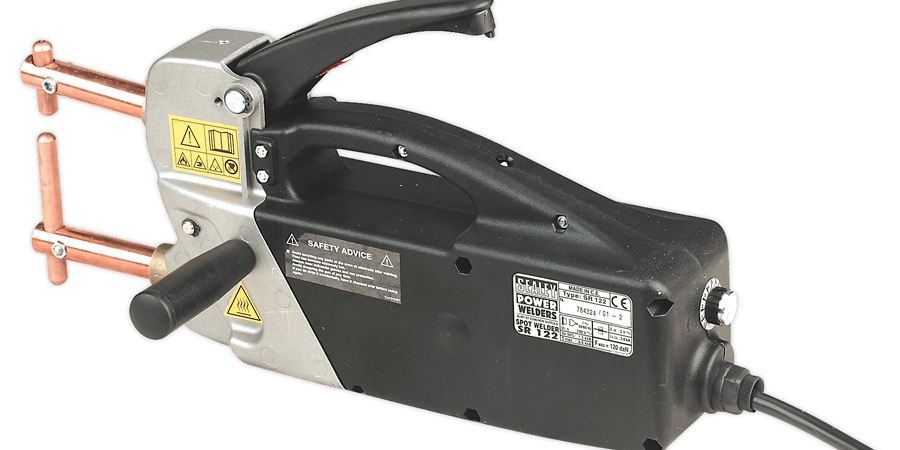

Spot Welder with Timer
Semi-automatic spot welder.
Composite casing and handle reduce heat transfer for operator comfort.
Die-cast aluminium head and chassis reduces overall weight for improved handling.
Integral synchronous timer enables adjustable spot time of between 0.1 and 1.2 seconds.
Fully adjustable jaw pressure from 40kg to 120kg enables close control of weld quality.
Supplied with 120mm welding arms, electrodes and side handle.
Made in Europe.
| Model No: | SR122 |
| Specification Table: | |
| Supply: | 230V |
| Capacity: | 1 + 1mm |
| Maximum Absorbed Power: | 6kW |
| Mains Fuse: | 16A |
| Welding Current (Maximum): | 3800A |
| Duty Cycle: | 1.5% |
| Insulation Class: | B |
| Weight: | 10.5kg |
