Description

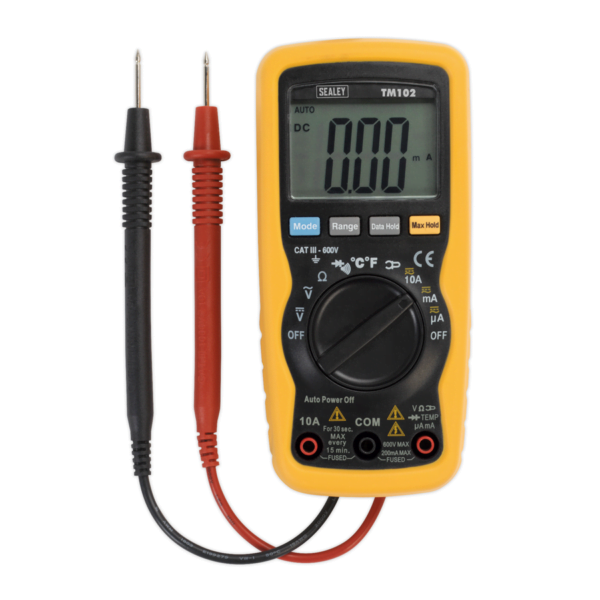

Professional Auto-Ranging Digital Multimeter – 8 Function
• High precision auto-ranging multimeter.
• Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use.
• Features temperature measurement capability, max/data hold and auto power off function.
• Double moulded housing with soft grip case and large display for ease of use.
• Practical probe and lead storage and integral upright stand for use on the workbench.
• Supplied in zipped pouch with carry strap.
| Model No: | TM102 |
| Specification: | |
| AC Voltage (Accuracy): | 200mV (±1.5%), 2V (±1.2%), 20V, 200V (±1.5%), 600V, 1000V (±2%) |
| DC Voltage (Accuracy): | 0-200mV (±0.5%), 2V, 20V, 200V (±1.2%), 600V, 1000V (±1.5%) |
| AC Current (Accuracy): | 200µA (±1.5%), 2000µA, 20mA, 200mA (±1.8%), 10A (±3%) |
| DC Current (Accuracy): | 200µa (±1%), 2000µa, 20mA, 200mA (±1.5%), 10A (±2.5%) |
| Resistance (Accuracy): | 0-200? (±1.2%), 2k? (±1%), 20k?, 200k?, 2M? (±1.2%), 20M? (±2%) |
| Capacitance (Accuracy): | No |
| Temperature (Accuracy): | -50ºC to 1000ºC (±3%), -98 to 1832ºF |
| Frequency (Accuracy): | No |
| Duty Cycle: | No |
| Continuity Audible: | Yes |
| Diode Test: | Yes |
| Transistor Test: | No |
| Hi-Impact Rubber Case: | Yes |
| Digits x Height: | 3.5 x 14mm |
| Low Battery Indicator: | Yes |
| Battery (Supplied): | 1 x 9V |
| Information: | Data-Hold, Auto Power Off, Non Contact Voltage Detection |
| Size (L x W x D): | 150 x 70 x 48mm |
| Weight: | 255g |
| Conformity: | EN 61010-1 |
