Description

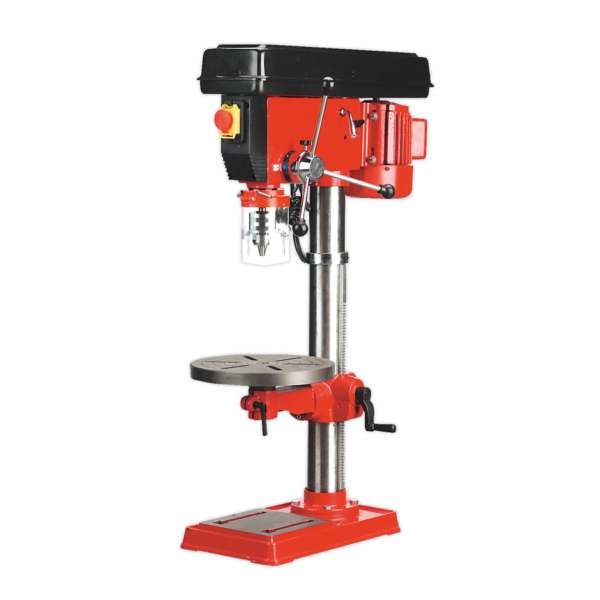

Pillar Drill Bench 16-Speed 1070mm Height 650W/230V
• One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
• Meets Safety of Machinery (Safety) Directives 1992 (and amendments).
• Safety devices fitted include a no voltage release switch, allowing insurance company approval for use in educational establishments.
• Model No. GDM50B and up have Morse taper spindle housings for taking taper shank drill bits.
• All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
• All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
• Mortise attachments are available for all Model No’s GDM120B – GDM200F inclusive.
| Model No: | GDM150B |
| Drilling Capacity (Chuck Size): | 16mm |
| Spindle Nose Taper: | MT2 |
| Swing: | 436mm |
| Spindle Centre to Column: | 178mm |
| Spindle Travel: | 80mm |
| Number of Speeds: | 16 |
| Speed Range: | 120-3000rpm |
| Maximum Distance Spindle to Table: | 480mm |
| Maximum Distance Spindle to Base: | 670mm |
| Working Table Surface Size: | Ø310mm |
| Working Base Surface Size: | 205 x 205mm |
| Overall Base Size: | 440 x 260mm |
| Column Diameter: | 80mm |
| Collar Diameter: | 60mm |
| Overall Height: | 1070mm |
| Motor Power (Start): | 450W (650W) |
| Supply: | 230V |
| Weight: | 68kg |
| Optional Keyless Chuck 16mm: | GDMX/KC |
