Description

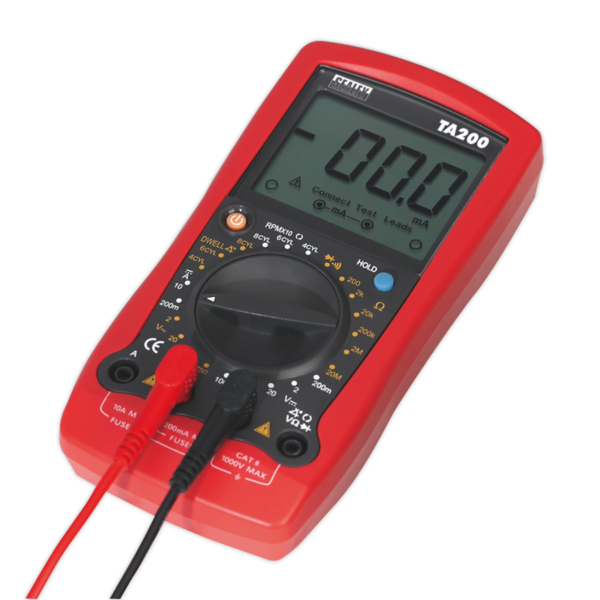

Digital Automotive Analyser 8 Function
• Durable case and integral stand suitable for the toughest workshop conditions.
• Large, hi-contrast LCD display with 21mm high digital read-out.
• Unique Test Lead Connection feature indicates correct hook-up.
• Includes data-hold feature and low battery display.
• Supplied with test probes and comprehensive manual.
| Model No: | TA200 |
| Specification: | |
| Tach (rpm): | 4/6/8Cyl 0-10000 (x10)rpm |
| Dwell: | 4Cyl 0-90°, 6Cyl 0-60°, 8Cyl 0-45° |
| AC Voltage: | 2V, 20V, 200V, 750V |
| DC Voltage: | 200mV, 2V, 20V, 200V, 1000V |
| AC Current: | No |
| DC Current: | 200mA, 10A |
| Capacitance: | No |
| Frequency: | No |
| Duty Cycle: | No |
| Pulse Width: | No |
| Resistance: | 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ |
| Continuity: | <30Ω |
| Temperature: | No |
| IR Temperature: | No |
| Diode Check: | Yes |
| Transistor Test: | No |
| Back Light: | No |
| Bar Graph Display: | No |
| Display Hold: | Yes |
| Auto-Ranging: | No |
| Inductive Coupler: | No |
| PC Interface: | No |
| Digits Height: | 21mm |
| Auto Power Off: | No |
| Low Battery Indicator: | Yes |
| Batteries (Supplied): | 9V (PP3) |
| Hi-Impact Case: | Yes |
| Size (L x W x D): | 180 x 85 x 40mm |
