Description

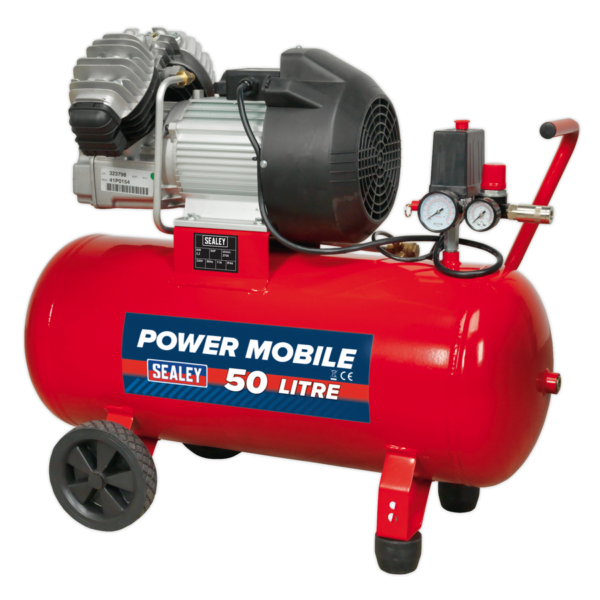

Compressor 50ltr V-Twin Direct Drive 3hp
• V-Twin pump with aluminium cylinders and cast iron liners for reduced weight and improved resistance to wear.
• Suitable for general purpose workshop applications.
• Pump directly coupled to heavy-duty induction motor for reliable operation.
• Precision welded receiver tank manufactured to meet Pressure Vessel Directive.
• Fitted with fully automatic pressure cut-out switch, air regulator and pressure gauges for tank and supply.
• Supplied with handle and wheels for easy manoeuvrability.
• Fitted with ASTA/BS approved non-rewirable plug.
| Model No: | SAC05030 |
| Motor Output: | 3hp |
| Supply: | 230V |
| Phase: | 1ph |
| Minimum Rated Supply: | 13A |
| Air Displacement cfm(ltr/min): | 12.6(357) |
| Maximum Free Air Delivery cfm(ltr/min): | 8.75(248) |
| Maximum Pressure: | 130psi(9bar) |
| Receiver Capacity: | 50ltr |
| Outlet: | Quick Release Coupling |
| Size (W x D x H): | 810 x 420 x 620mm |
| Weight: | 37kg |
