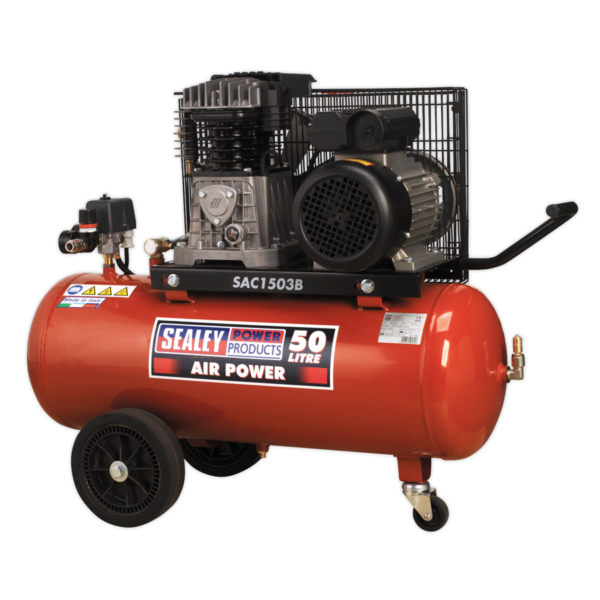

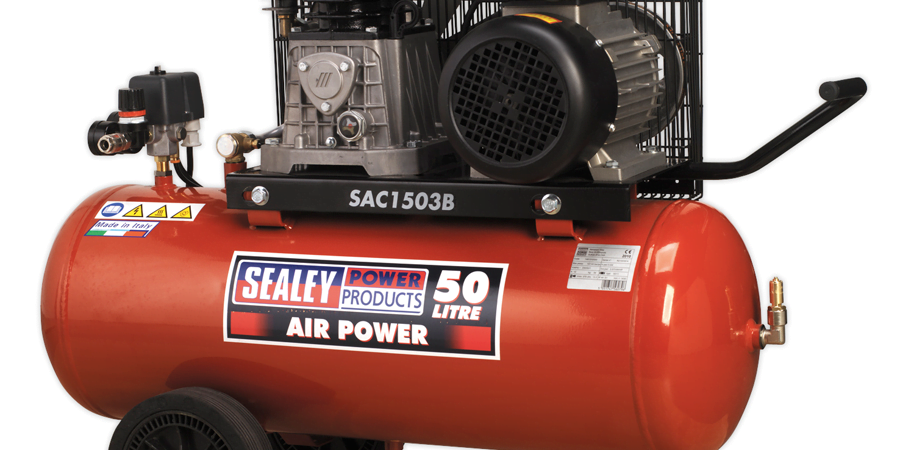

Compressor 50ltr Belt Drive 3hp with Cast Cylinders & Wheels
• Suitable for the professional workshop, these units are fitted with a genuine 3hp motor.
• Twin capacitors and a centrifugal switch aid trouble free start up on a 13amp supply.
• Pumps feature heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long life.
• Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
• Supplied with full CE certification, test certificates and operating/maintenance manual.
| Model No: | SAC1503B |
| Motor Output: | 3hp |
| Voltage/Phase: | 230V – 1ph |
| Minimum Rated Supply: | 13A |
| Speed: | 1630rpm |
| Air Displacement cfm(ltr/min): | 13.4(380) |
| Maximum Free Air Delivery cfm(ltr/min): | 8.8(249) |
| Maximum Pressure: | 145psi(10bar) |
| Receiver Capacity: | 50ltr |
| Outlet Fitting: | 1/4″BSP Female Thread |
| Dimensions (W x D x H): | 1020 x 390 x 740mm |
| Weight: | 50kg |
