Description

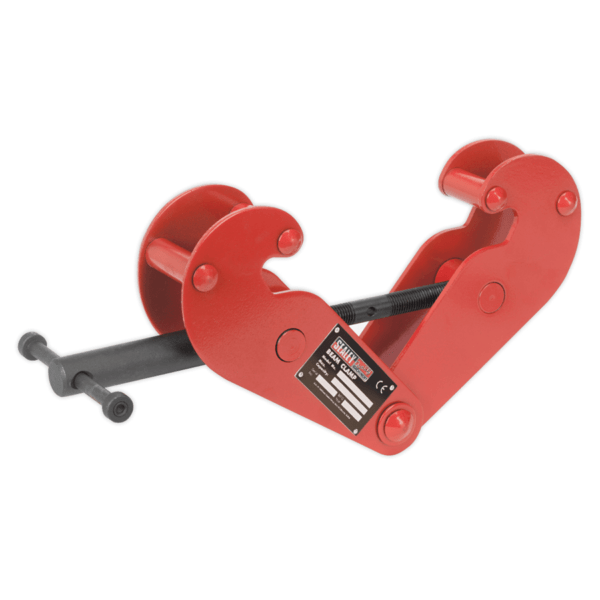

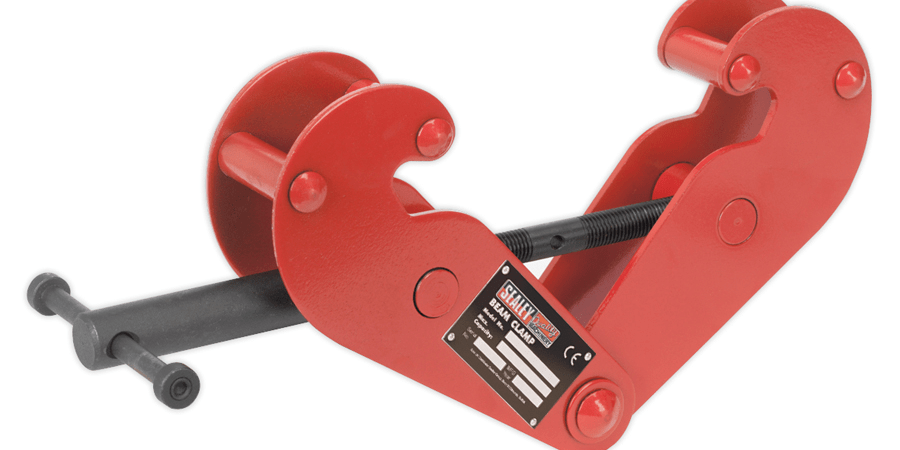

Beam Clamp 1tonne
• Suitable for semi-permanent attachment to steel beams and acts as a lifting point for chain blocks, hoists and lifting tackle.
• The clamp may also be used for lifting and transfer of steel beams and as a pulling clamp.
• Low profile afforded by integral pivot/lifting point.
| Model No: | BC1000 |
| Capacity: | 1000kg |
| Adjustable Beam Width: | 75-220mm |
| A: | 260mm |
| B: | 180-360mm |
| C: | 64mm |
| D: | 5mm |
| E: | 215mm |
| F: | 102-155mm |
| G: | 25mm |
| H: | Ø22mm |
| Weight: | 4.5kg |
| Refer to catalogue for diagram. |
