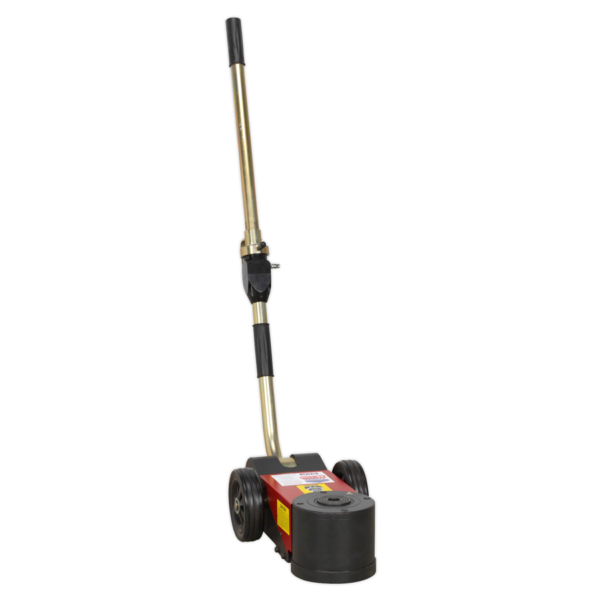

Air Operated Folding Jack 15-30tonne – Telescopic

£948.70 exc. VAT

£1,138.44 inc. VAT

Out of stock

SKU: SEAL YAJ15-30F Category:


Air Operated Folding Jack 15-30tonne – Telescopic

• Compact, light weight professional folding air jack.
• Spring loaded dead man’s control enables safe, controlled lifting/lowering of vehicle.

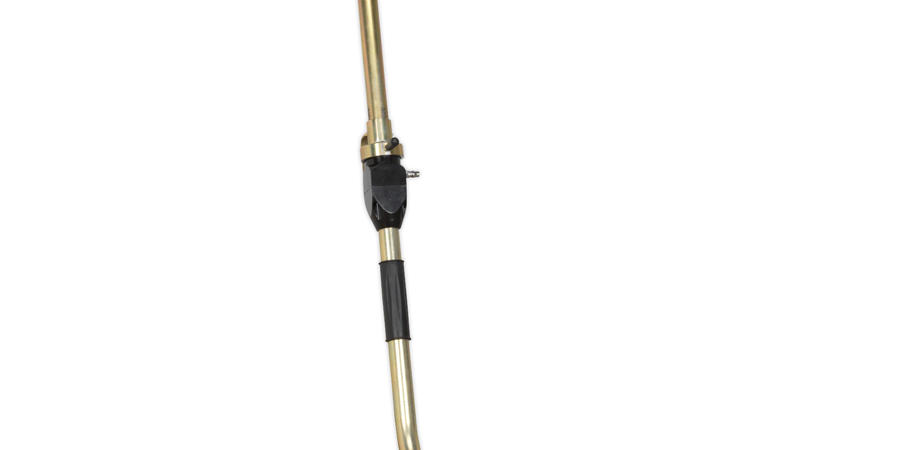

• Handle locks in position and can be used at different angles to allow for improved manoeuvrability and access around the vehicle.
• Ideal for workshop or roadside use, takes the effort out of lifting heavy plant, tractors and commercial vehicles.
• Supplied with 45mm and 75mm extensions to help close the gap between the saddle of the jack and the jacking point.

Model No:YAJ15-30F
Maximum Capacity:30tonne
Minimum Height:150mm
Maximum Height (inc. Extension)/Capacity:
Stage 1 (mm/tonne):343/30
Stage 2 (mm/tonne):409/15
Piston Stroke:139mm
Screw Extension:
Chassis Length:500mm
Length including Handle:1000mm + 600mm (Extension)
Width Without Wheels:176mm
Overall Width:290mm
Air Consumption:10.5cfm
Working Pressure:116-174psi
