Description
Manufactured from forged alloy steel, quenched and tempered. Manufactured and tested in accordance with EN1677-1, certified by DGUV GS-OA-15-03.
Load rated parts are 100% magnaflux crack detected; Individual forged parts are traceable to Test Certification. Proof tested to 2.5 times the WLL. Fatigue rated to 1.5 times the WLL. Design Factor 5 : 1 The excavator weld-on hook is designed to be a permanent slinging attachment point for jibs and arms on mobile excavators

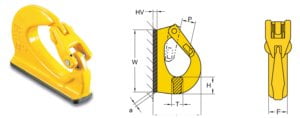

Measurements:
F: 25mm
H: 27mm
L: 70mm
P: 18mm
T: 18mm
W: 95mm
HV: 7mm
a: 4mm
