Description

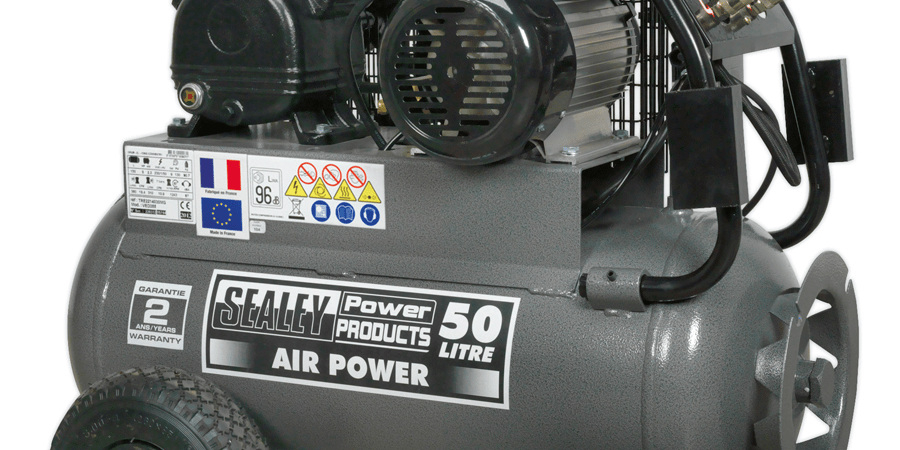

Compressor 50ltr Belt Drive 3hp with Front Control Panel
- Twin capacitors and a centrifugal switch aid trouble free start up on a good 13Amp supply.
- Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long life.
- Features an easy to use bespoke control panel with two outlets, one regulated and one direct.
- Heavy-duty pneumatic wheels with single front castor for easy manoeuvrability.
- Supplied with hose reel to keep your workspace tidy.
- Includes a drain valve for easy release of condensed water build up in the tank.
| Model No: | SAC3503B |
| Motor Output: | 3hp |
| Voltage/Phase: | 230V – 1ph |
| Minimum Rated Supply: | 16A |
| Speed: | 1140rpm |
| Air Displacement cfm(ltr/min): | 12.3(347) |
| Maximum Free Air Delivery cfm(ltr/min): | 9.5(270) |
| Maximum Pressure: | 145psi(10bar) |
| Receiver Capacity: | 50ltr |
| Outlet Fitting: | Hi-Flow Quick Release Coupling |
| Dimensions (W x D x H): | 990 x 390 x 740mm |
| Weight: | 65kg |
