Description
The WH-C4 chain hoist top and bottom hooks are fitted with heavy duty cast steel latches. The latch and hook tip are integrated creating a strong and robust hook closure.
WH-C4 chain block top and bottom hooks have, as part of the hook forging, overload indicator marks either side of the hook throat. By measuring the distance between the indicator marks, the hook can be quickly and easily checked to see if any stretch has occurred due to misuse or overloading.
WH-C4 chain hoist is manufactured in accordance with EN13157 which requires that it can be used within an operating temperature range of -40°C to +55°C.

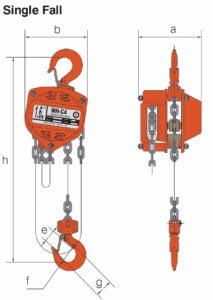

Measurements:
A: 134mm
B: 155mm
E: 26.5mm
F: 40mm
G: 44mm
H: 306mm
WH-C4 chain hoist meets and exceeds the requirements of the following international standards:
British Standard BS EN13157:2004 + AI:2009
American Standard ASME B30.16-2012
Australian Standard AS1418.2-1997
South African Standard SANS 1594:2007
NORSOK R-002: 2017.
